“Star-Sparkle”charging robot
E-Charge | Autonomous New Energy Charging Robot

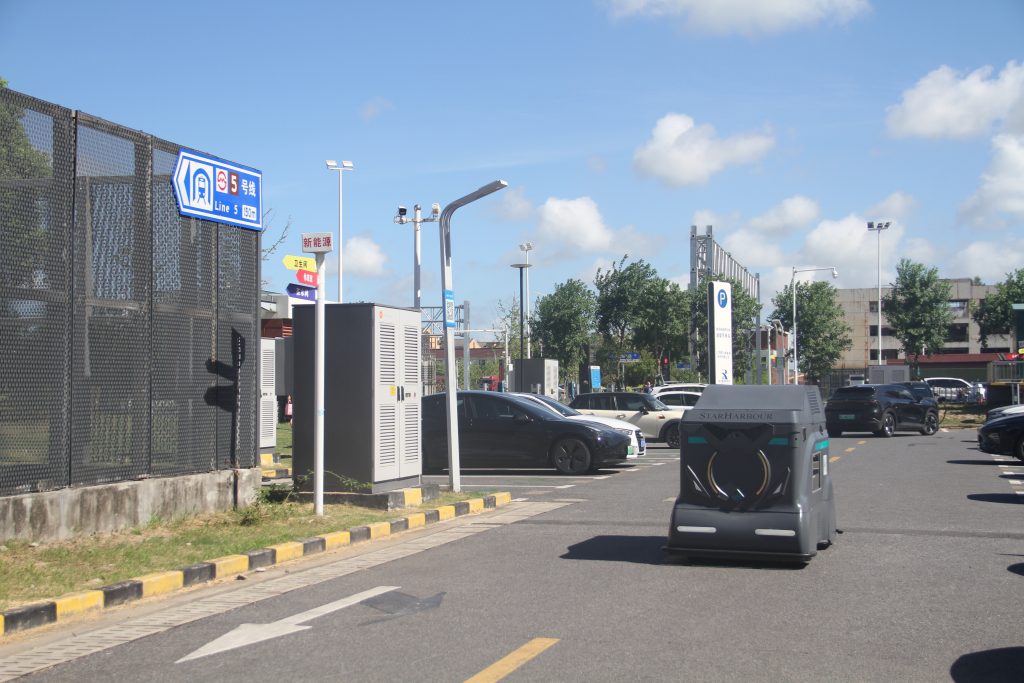

Intelligent Charging Robot Working Scene
<

Fixed Parking Space Not Required
Robot Home Charging Service

Innovative Charging Solutions for New Energy

Request a Consultation
104kWh

Ultralarge battery

capacity

10min

The refueling range is

approximately 135km

360°

Walking in any

posture

95%

Vehicle Model Compatibility Rate

Core Features

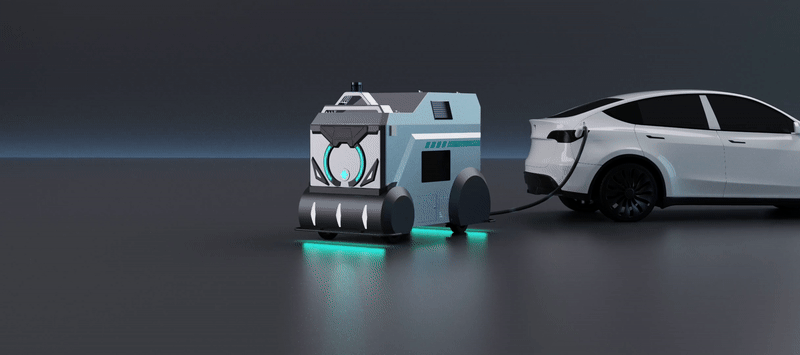

Charger Finds Car, New Charging Experience!

From appearance to safety, every feature is designed around “convenience, efficiency, reliability”, adapting to diverse global usage scenarios.

104kWh Ultra-large Capacity

The mobile charging robot is equipped with a 104kWh ultra-large capacity battery, capable of supplying energy to 4-5 new energy vehicles.

100kW DC Ultra-fast Charging

Liquid-cooled ultra-fast charging, replenishing approximately 135km in 10 minutes, charging efficiency comparable to professional DC charging piles.

Full Vehicle Compatibility

Supports DC 200V-1000V wide voltage range, covering global mainstream new energy vehicles such as Tesla, BYD, NIO, etc.

360° Any Posture Movement

Four-wheel eight-drive Jinmaohu V2 chassis, full of power, supports 360° steering, not afraid of narrow spaces.

All-weather Safety Protection

5G/Wi-Fi dual network connection, real-time monitoring of robot status, power level and fault warning, supports remote upgrade and cluster management.

Remote Operation & Maintenance Monitoring

Supports remote scheduling, OTA upgrades and multi-machine collaborative management, reducing operation and maintenance costs.

Core Technologies

Technology Innovation Based on International Standards

Each technology has passed strict tests and complies with international standards such as CQC and ISO, ensuring stability and reliability in different scenarios worldwide.

Full-stack Self-developed VCU

As the core control component, the full-stack self-developed VCU is the core engine of R&D technology, with real-time control algorithm 100% independently developed.

Complies with ISO 15118 Internet of Vehicles Communication Standard

Adaptive Charging Control

Real-time detection of vehicle battery status (SOC), automatic adjustment of voltage and current – protecting battery life while maximizing charging speed.

Complies with IEC 61851 Charging System International Standard

Multi-network Communication Technology

Supports 5G, Wi-Fi 6, Bluetooth 5.2 triple communication modes, maintains stable connection even in weak signal areas, with latency below 100ms.

Complies with 3GPP 5G International Communication Standard

Intelligent Battery Management (BMS)

Built-in high-precision BMS system, real-time monitoring of voltage, temperature, cycle times, extending battery life to over 5 years.

Complies with IEC 62133 Battery Safety International Standard

Technical Specifications

Parameter Category Specification Details
Charging Power 60kW-120kW DC Fast Charging (Optional)
Robot Battery 100kWh-200kWh LFP Battery (Supports Battery Swap)
Single Charge Time 30-60 minutes (80% charge for most vehicle models)
Navigation Accuracy ±5cm (Lidar + Visual Fusion Positioning)
Protection Rating IP65 (Dustproof and Waterproof, All-weather Applicable)
Operating Temperature -30°C to +50°C (Adapts to Global Climate)
Communication Methods 5G, Wi-Fi 6, Bluetooth 5.2
Application Scenarios

Adapting to Diverse Global Demand Scenarios

From urban commercial complexes to suburban communities, from airport hubs to logistics parks, providing customized charging solutions.

Commercial Complex

Commercial Complex

Provide customers with a seamless “shopping + charging” experience, extending stay time by over 15%, enhancing business competitiveness.

View Solution
Residential Community

Residential Community

No need to modify parking spaces, a single robot covers 50-100 households, supports off-peak charging at night.

View Solution
Industrial Park

Industrial Park

Provide 24-hour charging service for new energy rental vehicles and private cars, supporting remote scheduling.

View Solution
Logistics Park

Logistics Park

Scheduled charging, automatic docking, reducing truck waiting time, improving logistics turnover efficiency.

View Solution

Contact Us

If you are interested in our products, please fill in your requirements, and we will contact you within 24 hours.

Why Choose Us?

  • National High-tech Enterprise, multiple core technology patents
  • 50+ global implementation cases, serving diverse customers
  • “Robot + Platform + Operation” full-chain service, after-sales response < 2 hours

Direct Contact

  • 400 863 9527
  • market@hkstarharbour.com

Supports global multi-region deployment, project implementation completed in many locations
